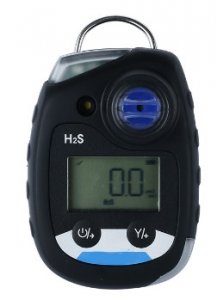

New SYT008 series is a maintenance-free single gas detector, the most reliable, user-friendly, cost-effective detection solution for worker safety and operational compliance. It offers up to 2 years of protection-with no need for calibration, sensor replacement, battery replacement or battery charging. It’s IECEx, ATEX, CNEX explosion proof certificated and meet the highest standards of quality and reliability to ensure workers’ safety and compliance. This is small, sturdy, ergonomic, and can be attached to a work coat or cap with alligator clips for easy carrying. This can detect toxic and harmful gases like: carbon monoxide, hydrogen sulfide, oxygen and sulfur dioxide, other toxic gases can be customized, which is widely used in petroleum, petrochemical, metallurgy, chemical and other industries for gas detection and personnel protection.
Product Advantage
- Low power consumption and long standby time, the standby time is up to 2 years, no need to replace the battery
- Maintenance free: just turn on the device and it will run continuously -no calibration, no sensor replacement, no battery charging
- Ultra-high buzzer alarm sound, 2 high-bright red LED up and down alarm, sound, light and vibration triple alarm to remind workers
- High point alarm, low point alarm, TWA, STEL multiple alarm types, the user can adjust the alarm set point as needed throughout the life cycle
- Automatic logging 10 sets of recent alarm events for easy and accurate record keeping
- Protection class IP68, splash-proof, dust-proof, explosion-proof, shock-proof, intrinsically safe circuit design
- Compact and lightweight design with two-button operation without extensive training
- Affordable, with low cost of ownership
- Small size, light weight, easy to carry
- The shell is made of high-strength materials, designed for a variety of harsh environments, comfortable and durable
- With self-test function, which can improve safety by automatic self-test
- One press to check the battery and voltage
Industry Application: Oxygen Detection, Toxic Detection
Situation: Furniture, wallpaper, coating, papermaking, pharmacy, health care, disinfection, chemical fertilizer, livestock farm, green household, agricultural production.
|
Gas Type |
Depends on chosen gas (see next page) |
|
Sampling method |
Diffusion |
|
Detection range |
Depends on chosen gas (see next page) |
|
Resolution |
Depends on chosen gas (see next page) |
|
Accuracy |
≤±3%FS or ±10% (depending on the specific sensor) |
|
Response time |
≤30s(T90) |
|
Principle |
Electrochemical principle |
|
Display |
Gas name, concentration unit, measured value, electricity |
|
Alarm mode |
Sound, light, vibration alarm, high and low alarm values can be set by yourself |
|
Degree of protection |
IP66/68 |
|
Alarm type |
Low alarm, high alarm, STEL, TWA, low battery |
|
Battery |
3.6V dry battery (non–rechargeable) |
|
Dimensions |
131x83x35mm |
|
Weight |
240g |
|
Approval |
CE, IECEX, ATEX |
|
Warranty |
24 months |
|
Gas |
Range |
Other available range |
Resolution |
|
CO |
0-1000ppm |
0-100ppm, 0-500ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm |
0.1ppm, 1ppm |
|
H2S |
0-100ppm |
0-10ppm, 0-50ppm, 0-500ppm, 0-1000ppm, 0-10000ppm |
0.01, 0.1, 1ppm |
|
O2 |
0-30%VOL |
0-5%VOL, 0-25%VOL, 0-50%VOL, 0-100%VOL |
0.01%VOL |
|
EX / CH4 |
0-100%LEL |
0-100%VOL |
1%LEL, 0.01%VOL |
|
N2 |
0-100%VOL |
0.01%VOL |
|
|
NH3 |
0-100ppm |
0-50ppm, 0-500ppm, 0-1000ppm, 0-5000ppm |
0.01, 0.1, 1ppm |
|
CL2 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm |
0.01. 0.1ppm |
|
H2 |
0-1000ppm |
0-100%LEL, 0-2000ppm, 0-10000ppm, 0-40000ppm, 0-4%VOL |
1%LEL, 1ppm |
|
CH2O |
0-10ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
O3 |
0-50ppm |
0-1ppm, 0-10ppm, 0-20ppm, 0-100ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
CO2 |
0-5000ppm |
0-2000ppm, 0-10000ppm, 0-20000ppm, 0-50000ppm, 0-5%VOL, 0-10%VOL, 0-50%VOL, 0-100%VOL |
1ppm, 0.01%vol |
|
NO |
0-100ppm |
0-20ppm, 0-50ppm, 0-500ppm, 0-1000ppm, 0-4000ppm |
0.01, 0.1, 1ppm |
|
NO2 |
0-20ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-4000ppm |
0.01, 0.1, 1ppm |
|
NOX |
0-20ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-4000ppm |
0.01, 0.1, 1ppm |
|
SO2 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm |
0.01, 0.1, 1ppm |
|
ETO |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
PH3 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm |
0.01, 0.1, 1ppm |
|
HCL |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm |
0.01ppm |
|
HCN |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm |
0.01ppm |
|
COCL2 |
0-1ppm |
0.01ppm |
|
|
CLO2 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm |
0.01ppm |
|
SiH4 |
0-10ppm |
0-50ppm |
0.01ppm |
|
F2 |
0-10ppm |
0-1ppm |
0.01ppm |
|
HF |
0-10ppm |
0.01ppm |
|
|
HBr |
0-10ppm |
0-50ppm, 0-100ppm |
0.01ppm |
|
H2O2 |
0-100ppm |
0-500ppm, 0-1000ppm, 0-2000ppm |
0.01, 0.1, 1ppm |
|
B2H6 |
0-5ppm |
0-10ppm |
0.01ppm |
|
AsH3 |
0-1ppm |
0-10ppm, 0-50ppm |
0.01ppm |
|
GeH4 |
0-1ppm |
0.01ppm |
|
|
N2H4 |
0-1ppm |
0.01ppm |
|
|
THT |
0-100ppm |
0-50mg/m3, 0-100mg/m3 |
0.01ppm, 0.01mg/m3 |
|
Br2 |
0-5ppm |
0-10ppm, 0-50ppm |
0.01ppm |
|
C2H2 |
0-100ppm |
0-2.3%VOL |
0.01ppm, 0.01%VOL |
|
C2H4 |
0-10ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 2.4%VOL |
0.01, 0.1, 1ppm, 0.01%VOL |
|
CH3OH |
0-100ppm |
0-50ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
C2H5OH |
0-100ppm |
0-50ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
CH4S |
0-100ppm |
0.01ppm |
|
|
C8H8 |
0-10ppm |
0-50ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.01, 0.1, 1ppm |
|
C4H6 |
0-10ppm |
0-50ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.01, 0.1, 1ppm |
|
VOC/TVOC |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
CH3Br |
0-10ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
C6H6 |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
C7H8 |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
C8H10 |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
