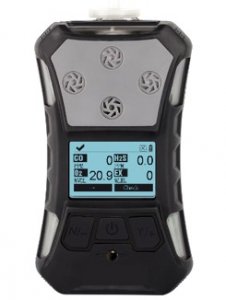

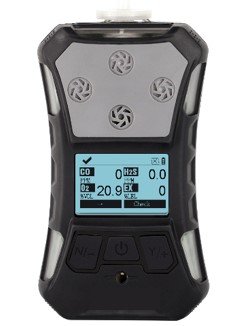

New SYT004 series is a high-performance portable gas detector
that can up to 5 gas types. It has humanized operation functions such as
one-key security detection, one-key storage, automatic image
flipping, as well as the man down alarm function; With optional
Bluetooth function, support data access remotely. It is IECEX, ATEX
explosion-proof certified and EMC certified; With safer product design
and the module design which makes the detection faster, and the compact
ergonomic design makes the device easy carrying; The explosionproof Grade of the
SYT004 series is Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades A,B and C and temperature group T1~T4.
Rugged and durable
The instrument can effectively resist a three-meter drop
The protection level of the instrument reaches IP67
The instrument has passed the EMC anti-static interference test and can work normally in the walkie-talkie environment
Explosion-proof circuit design, safe and reliable
The instrument has got IECEX, ATEX, Chinese explosion-proof certificates and the explosion-proof level reaches Exia IICT4 Ga
Multiple security protection
The man down alarm function has upgraded the safety of underground operators.
Password protection function prevents non-operators from modifying menu parameters.
With safety reminder function, sound and light vibration alarm function, let operators work without worries
The high and low alarm latched function allows the operator to better capture the sudden change of the gas concentration value.
Simultaneous measurement of multiple gases, multiple numerical display
The instrument can detect 1-4 gases at the same time
Real-time value, TWA, STEL, MAX, MIN multiple numerical display
Large screen display, flexible detection system, multiple filtering devices
The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
Built-in powerful sampling pump, fast detection speed
Can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection
Pump suction and diffusion dual use, to provide operators with more reliable protection
With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
Powerful function, more user-friendly operation
Beautiful and friendly user interface, reasonable and easy-to-use interactive mode
Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
Standard storage function, one-click data export, convenient for users to analyze
Unique modifiable ID identification function, convenient for users to allocate and manage the instrument
A full range of automatic detection functions, automatic prompts for voltage, pump failure alarms, etc., more comfortable to use One-key security detection, one-key open storage, automatic image flip
Support PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system
Support each channel sensor to restore the factory setting separately
Support multi-language including English. Chinese and etc.
Application
Confined space, Industrial hygiene, Oil and gas, Fire ground “Toxic Twins” detection, Environmental, Chemical, Pharmaceutical
Telecommunications, Multi-gas leak detection in industries such as chemical, food and beverage, oil and gas (downstream)
|
Sampling method |
Pump suction type |
|
Gas type |
See next page |
|
Measure range |
See next page |
|
Resolution |
See next page |
|
Response time |
≤30 seconds |
|
Precsiion |
≤±2%F.S except for special gases |
|
Language |
Chinese/English/Russia |
|
Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
|
Unit |
PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
|
Display |
monochrome graphics (160 x96) ,screen can be automatically flipped |
|
Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
|
Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported, with data cable |
|
Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
|
Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
|
Working hours |
More than 15 hours in continuous pumping mode |
|
Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
|
Explosion-proof grade |
IECEX/ATEX（II IG Ex ia IIC T4 |
|
Certification |
2004/108/EC（EMC） |
|
Protection grade |
IP67 |
|
Working temperature |
-20℃~+50℃ |
|
Humidity |
0～90%RH（no condensation） |
|
Environmental pressure |
86～106Kpa |
|
Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
|
Weight |
365g (including battery, belt clip and filter) |
|
Gas |
Range |
Other available range |
Resolution |
|
CO |
0-1000ppm |
0-100ppm, 0-500ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm |
0.1ppm, 1ppm |
|
H2S |
0-100ppm |
0-10ppm, 0-50ppm, 0-500ppm, 0-1000ppm, 0-10000ppm |
0.01, 0.1, 1ppm |
|
O2 |
0-30%VOL |
0-5%VOL, 0-25%VOL, 0-50%VOL, 0-100%VOL |
0.01%VOL |
|
EX / CH4 |
0-100%LEL |
0-100%VOL |
1%LEL, 0.01%VOL |
|
N2 |
0-100%VOL |
0.01%VOL |
|
|
NH3 |
0-100ppm |
0-50ppm, 0-500ppm, 0-1000ppm, 0-5000ppm |
0.01, 0.1, 1ppm |
|
CL2 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm |
0.01. 0.1ppm |
|
H2 |
0-1000ppm |
0-100%LEL, 0-2000ppm, 0-10000ppm, 0-40000ppm, 0-4%VOL |
1%LEL, 1ppm |
|
CH2O |
0-10ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
O3 |
0-50ppm |
0-1ppm, 0-10ppm, 0-20ppm, 0-100ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
CO2 |
0-5000ppm |
0-2000ppm, 0-10000ppm, 0-20000ppm, 0-50000ppm, 0-5%VOL, 0-10%VOL, 0-50%VOL, 0-100%VOL |
1ppm, 0.01%vol |
|
NO |
0-100ppm |
0-20ppm, 0-50ppm, 0-500ppm, 0-1000ppm, 0-4000ppm |
0.01, 0.1, 1ppm |
|
NO2 |
0-20ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-4000ppm |
0.01, 0.1, 1ppm |
|
NOX |
0-20ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-4000ppm |
0.01, 0.1, 1ppm |
|
SO2 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm |
0.01, 0.1, 1ppm |
|
ETO |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
PH3 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm |
0.01, 0.1, 1ppm |
|
HCL |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm |
0.01ppm |
|
HCN |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm |
0.01ppm |
|
COCL2 |
0-1ppm |
0.01ppm |
|
|
CLO2 |
0-10ppm |
0-20ppm, 0-50ppm, 0-100ppm |
0.01ppm |
|
SiH4 |
0-10ppm |
0-50ppm |
0.01ppm |
|
F2 |
0-10ppm |
0-1ppm |
0.01ppm |
|
HF |
0-10ppm |
0.01ppm |
|
|
HBr |
0-10ppm |
0-50ppm, 0-100ppm |
0.01ppm |
|
H2O2 |
0-100ppm |
0-500ppm, 0-1000ppm, 0-2000ppm |
0.01, 0.1, 1ppm |
|
B2H6 |
0-5ppm |
0-10ppm |
0.01ppm |
|
AsH3 |
0-1ppm |
0-10ppm, 0-50ppm |
0.01ppm |
|
GeH4 |
0-1ppm |
0.01ppm |
|
|
N2H4 |
0-1ppm |
0.01ppm |
|
|
THT |
0-100ppm |
0-50mg/m3, 0-100mg/m3 |
0.01ppm, 0.01mg/m3 |
|
Br2 |
0-5ppm |
0-10ppm, 0-50ppm |
0.01ppm |
|
C2H2 |
0-100ppm |
0-2.3%VOL |
0.01ppm, 0.01%VOL |
|
C2H4 |
0-10ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 2.4%VOL |
0.01, 0.1, 1ppm, 0.01%VOL |
|
CH3OH |
0-100ppm |
0-50ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
C2H5OH |
0-100ppm |
0-50ppm, 0-500ppm, 0-1000ppm |
0.01, 0.1, 1ppm |
|
CH4S |
0-100ppm |
0.01ppm |
|
|
C8H8 |
0-10ppm |
0-50ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.01, 0.1, 1ppm |
|
C4H6 |
0-10ppm |
0-50ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.01, 0.1, 1ppm |
|
VOC/TVOC |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
CH3Br |
0-10ppm |
0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
C6H6 |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
C7H8 |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
|
C8H10 |
0-10ppm |
0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm |
0.001, 0.01, 0.1, 1ppm |
